N BARELA WELDING × BLACK DIRTWORK CONSTRUCTION

BUILTTO EATROCK.

Custom-fabricated grizzly bars for rock and aggregate separation. One-off builds or our standard 8-foot screen — made to run hard on your site.

Request a Quote Call 575-513-8025

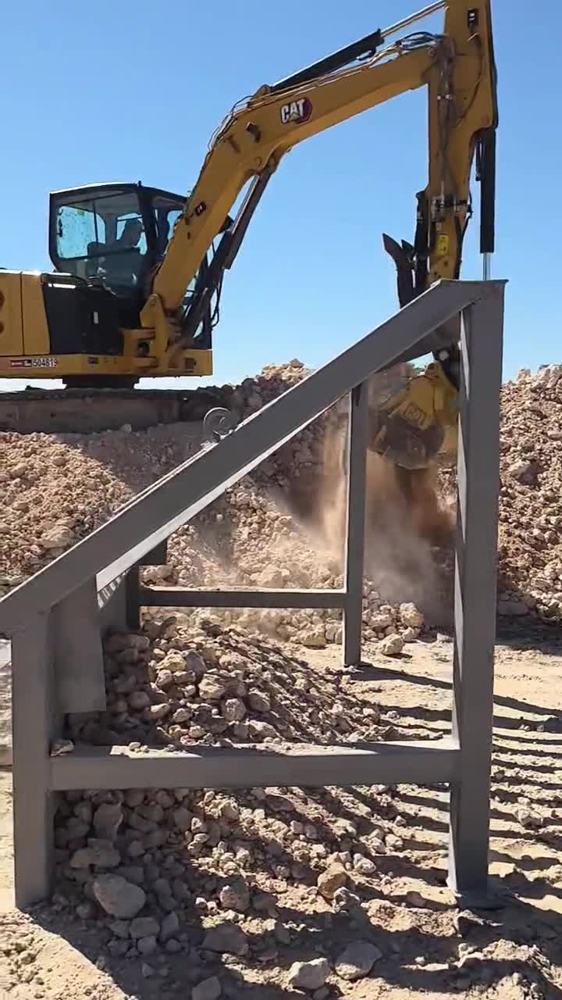

Excavator dumping rock onto a custom grizzly screen

In the field

Rock in, fines through.

Straight off a recent build — excavator dumping direct onto the deck, fines falling through, oversize rolling off the front wall.

Excavator dumping rock onto the grizzly deck

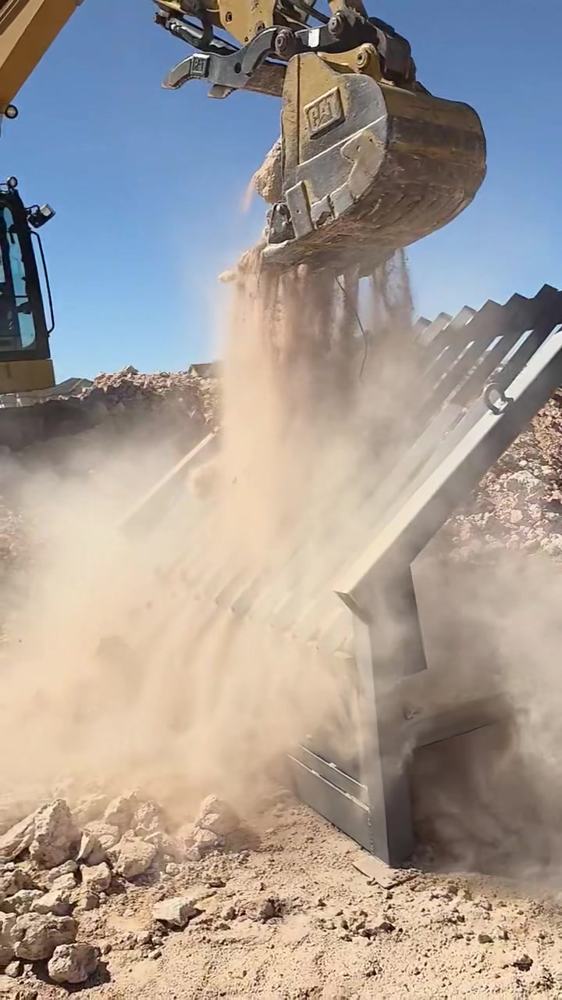

Rock breaking apart over the grizzly bars

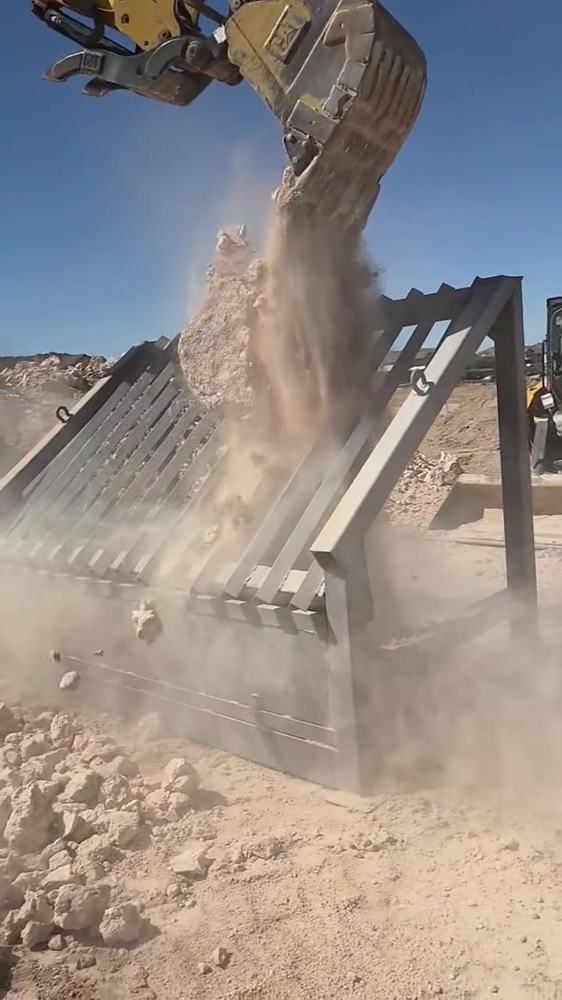

Full grizzly screen loaded with rock, dust in the air

Standard build

The 8-foot grizzly.

Our go-to size, built and proven in the field. Every dimension below is adjustable — this is the starting point, not the ceiling.

Standard Grizzly — 8′

CUSTOM SIZES AVAILABLE

Outer frame / legs

4×4 square tube

Back leg height

72″ (6′-0″)

Front leg height

35″

Deck sub-frame

3×3 tube, flush-notched

Deck size

96″ × 58″

Deck slope

39° from horizontal

Leg spacing

48″

Grizzly bars

2″ angle iron, ~14 bars

Bar gap

2″, just under

Front wall

C-channel reinforced

Building something different? Bar spacing, deck size, and leg height all change based on your rock size and equipment reach. Tell us what you're separating and we'll spec it.

Two shops, one build

Who's behind it.

N Barela Welding

FABRICATION & WELDING

Every grizzly is fabricated and welded in-house — deliberate, reinforced where it counts, built to your rock size and equipment.

575-513-8025 nbgrizzlyscreens@gmail.com

Black DirtWork Construction

DIRT WORK & PAD BUILDING

Dirt work out of Artesia, NM — building pads and prepping the ground with their own equipment, so each grizzly sits on a site that's built to hold it.

Owner: Mauricio Gabaldon 903-571-8961 blackllc23@gmail.com

American made. No excuses.

Every grizzly is fabricated and welded right here in the USA — and we proudly stand behind our veterans.

★ ★ ★

Get started

Request a custom quote.

Send over your rock size, site, and equipment — we'll get back to you with a build plan.
